NEW MEXICO MIXED-USE DEVELOPMENT

Interiors

Interior design studies for the tower residences, the podium's market, food hall and office floor, Building B's ground-floor retail and the station quarter, drawn to the Revision 4.4 plans.

Case study Drawings

28VIEWS

4BUILDINGS

9COMMERCIAL AND CIVIC ROOMS

6RESIDENCE TYPES

[01] / TOWER

Tower residences

16 VIEWS · SHEETS A-101, A-102

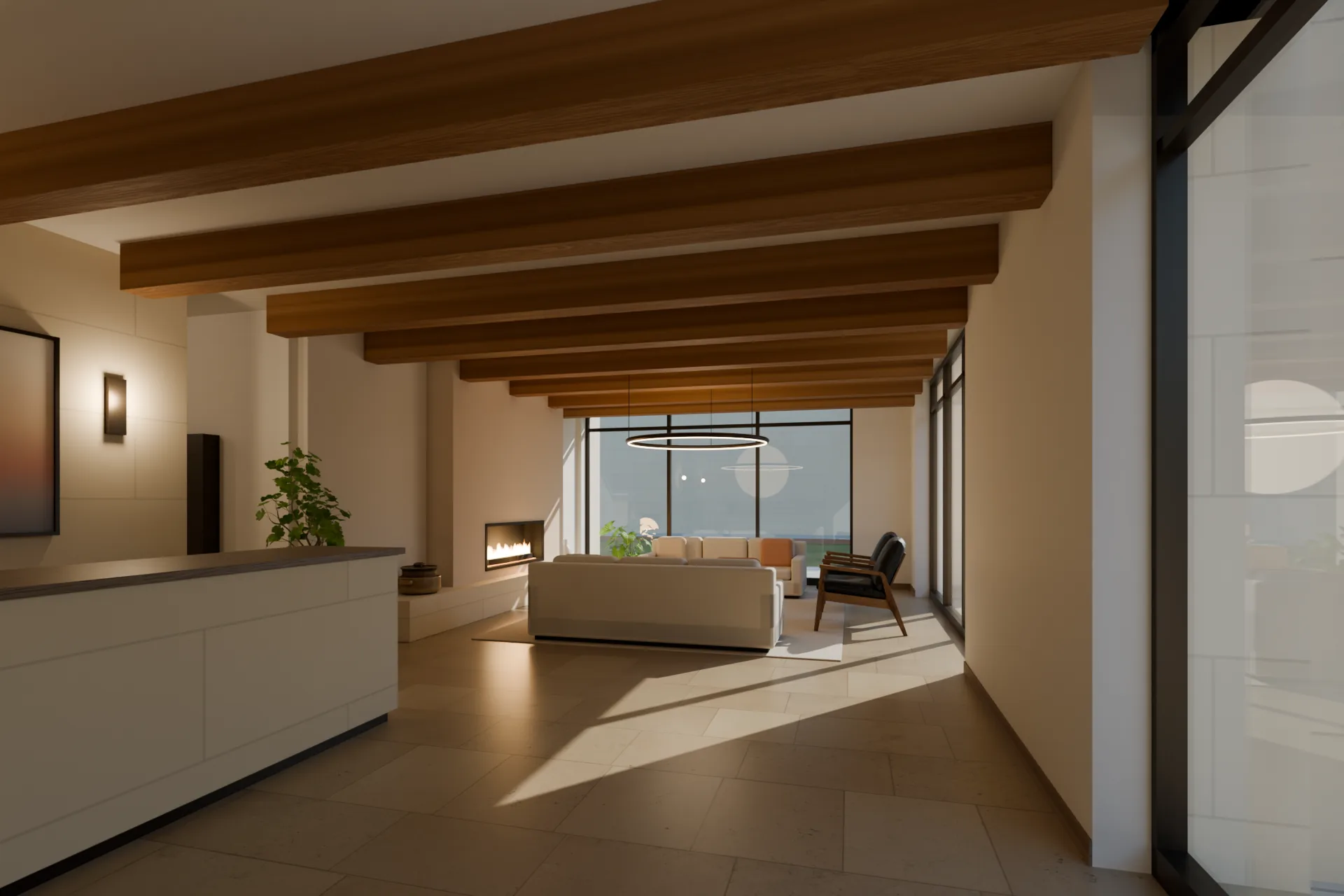

Tower lobby with a limestone reception desk, oak ceiling beams and a lounge around a linear fireplace on the far wall. — A-101 · TOWER LOBBY, EAST LOUNGE · 1,159 SF · LEVEL 1 · A-101

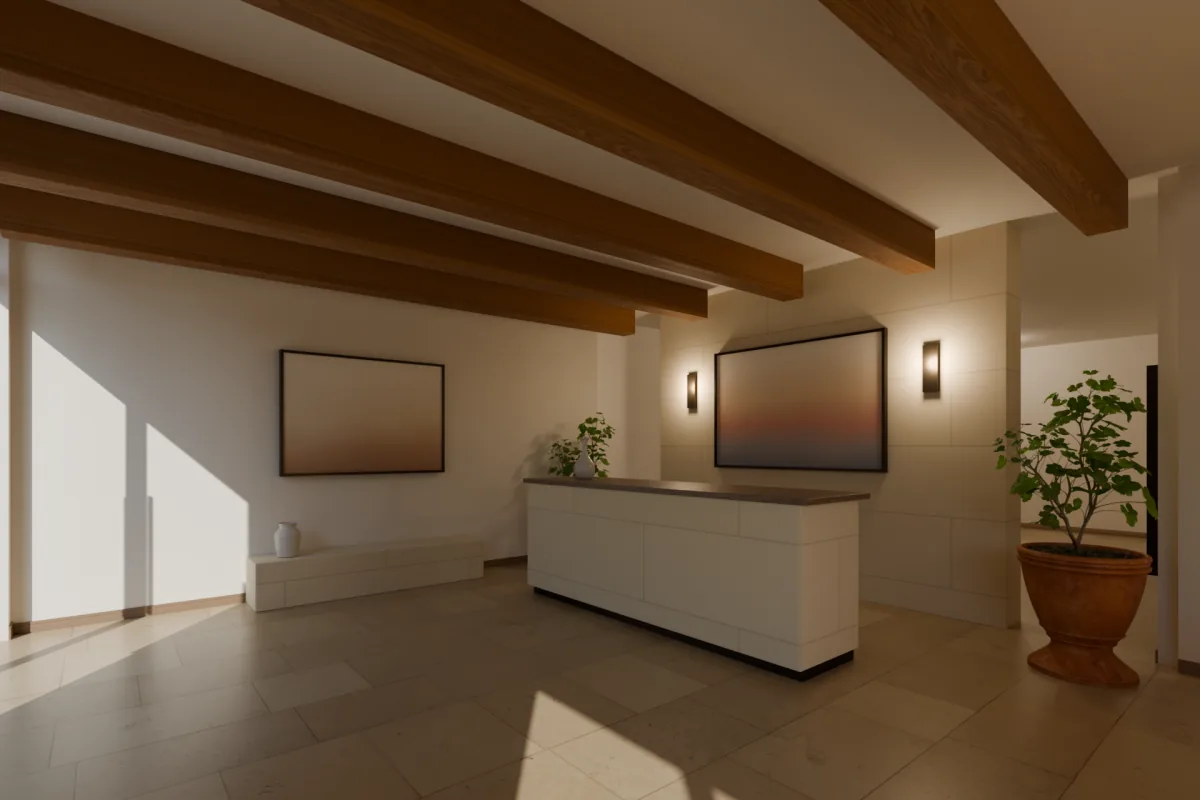

Lobby reception desk in limestone with a walnut top, a sandstone screen wall with two bronze sconces and a painting, and a stone bench on the side wall. — A-101 · TOWER LOBBY, RECEPTION · 1,159 SF · LEVEL 1 · A-101

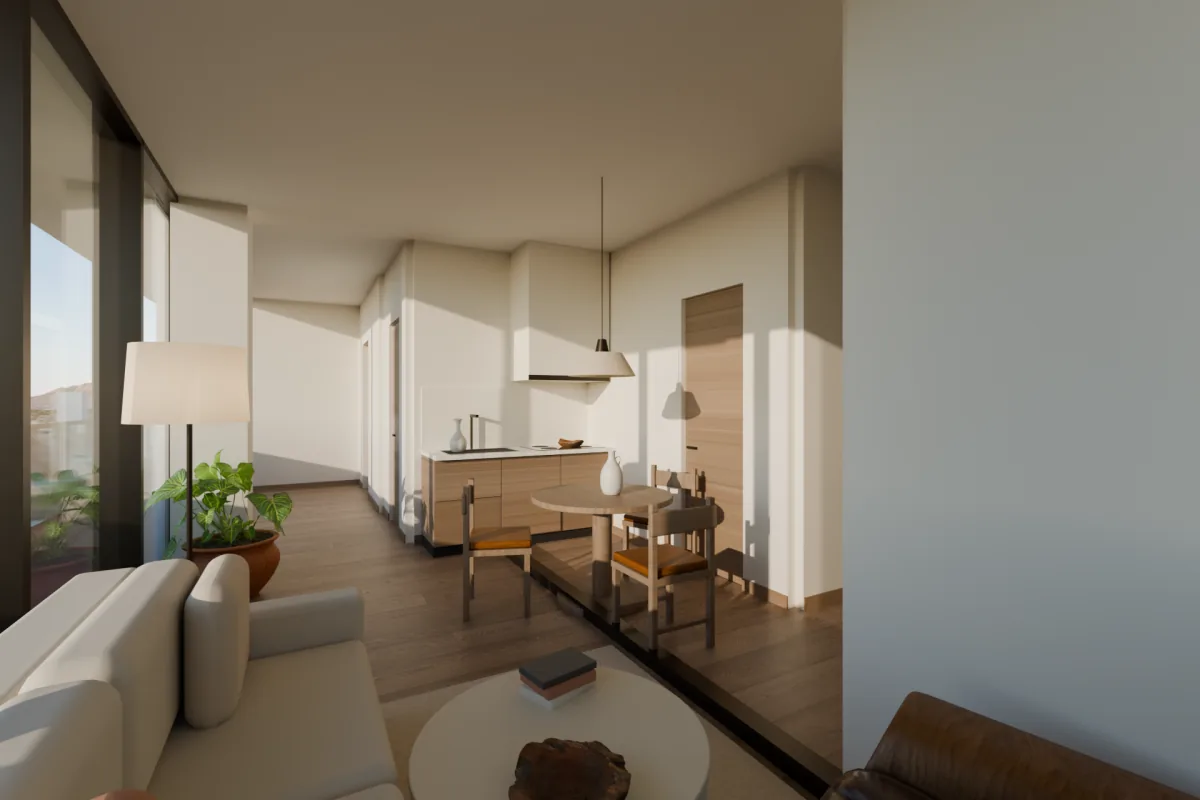

Apartment living room with a sofa against floor-to-ceiling glass, a round dining table with three chairs and an oak kitchen with a range hood. — A-1201 · ONE-BEDROOM, SOUTH: LIVING AND KITCHEN · 734 SF · LEVEL 12 · A-101

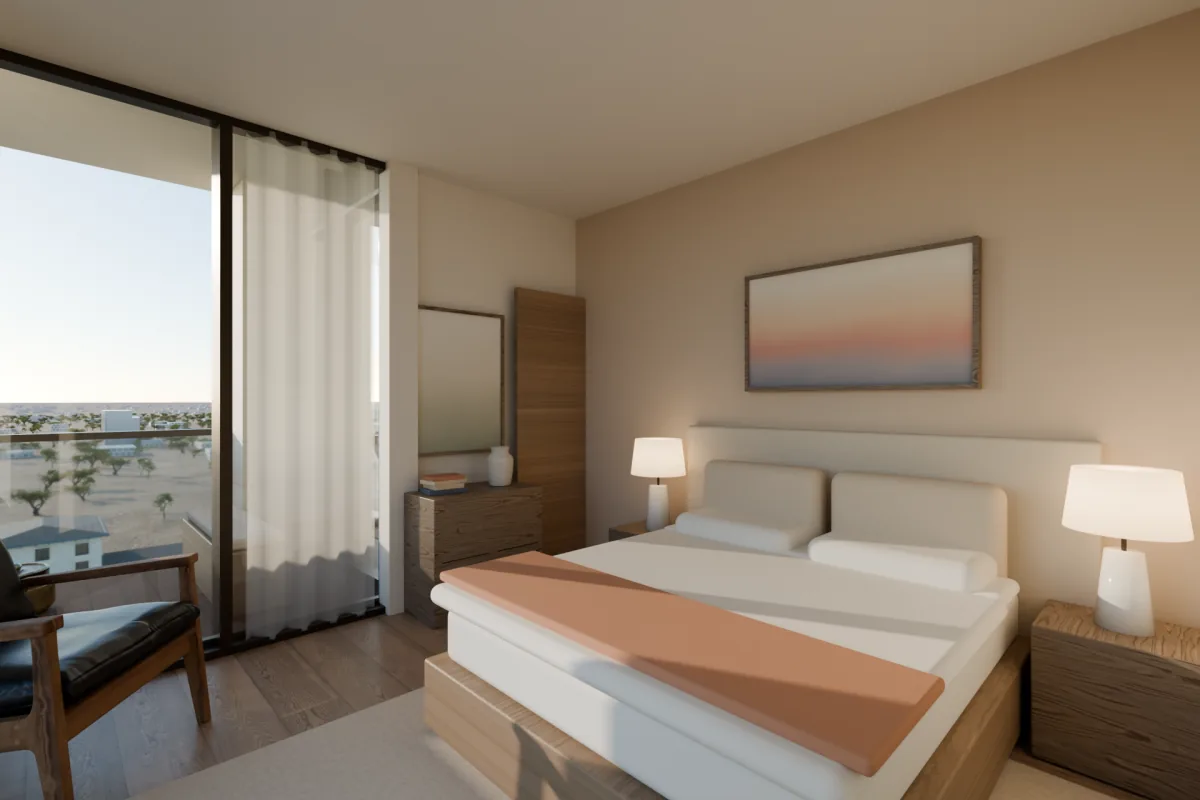

Bedroom with a double bed against a clay plaster wall, walnut nightstands with lamps, a dresser and a glass wall to a corner loggia. — A-1201 · ONE-BEDROOM, SOUTH: BEDROOM · 734 SF · LEVEL 12 · A-101

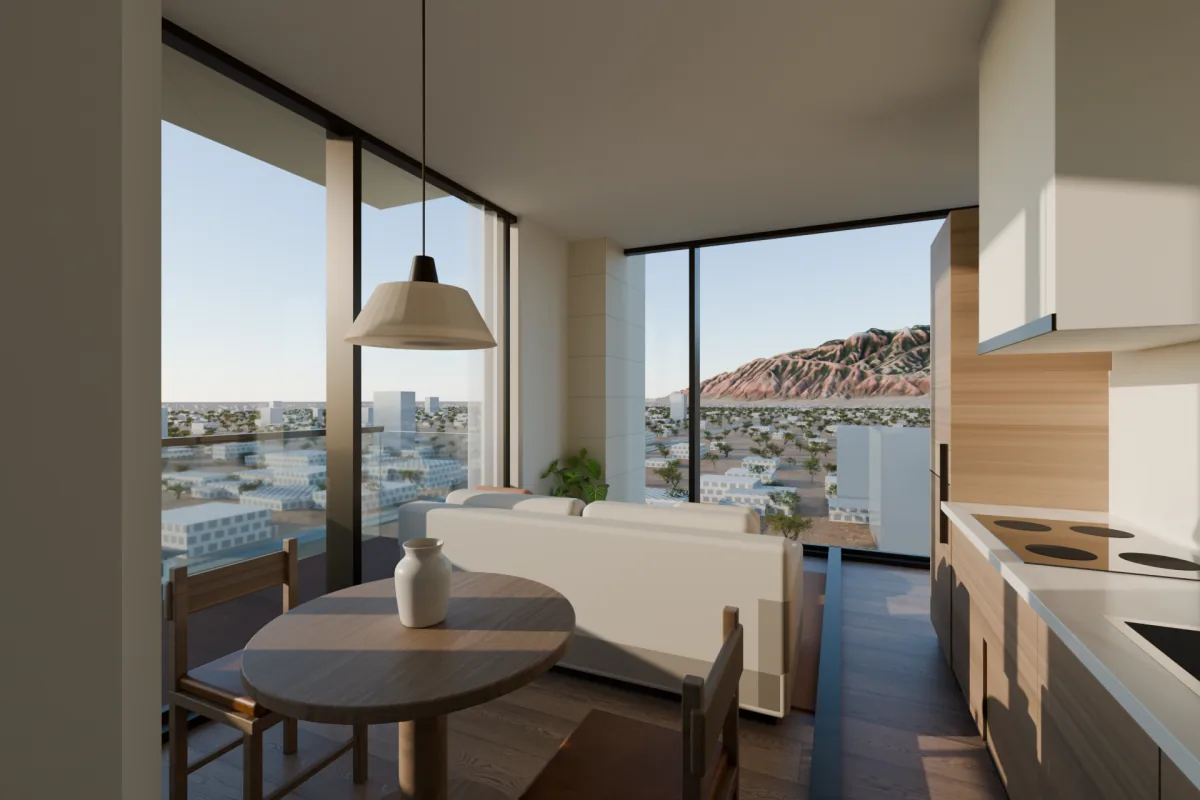

Small apartment living room with a round dining table, a sofa, a kitchen along one wall and corner windows facing the mountains. — A-1202 · ONE-BEDROOM, NORTH: LIVING · 547 SF · LEVEL 12 · A-101

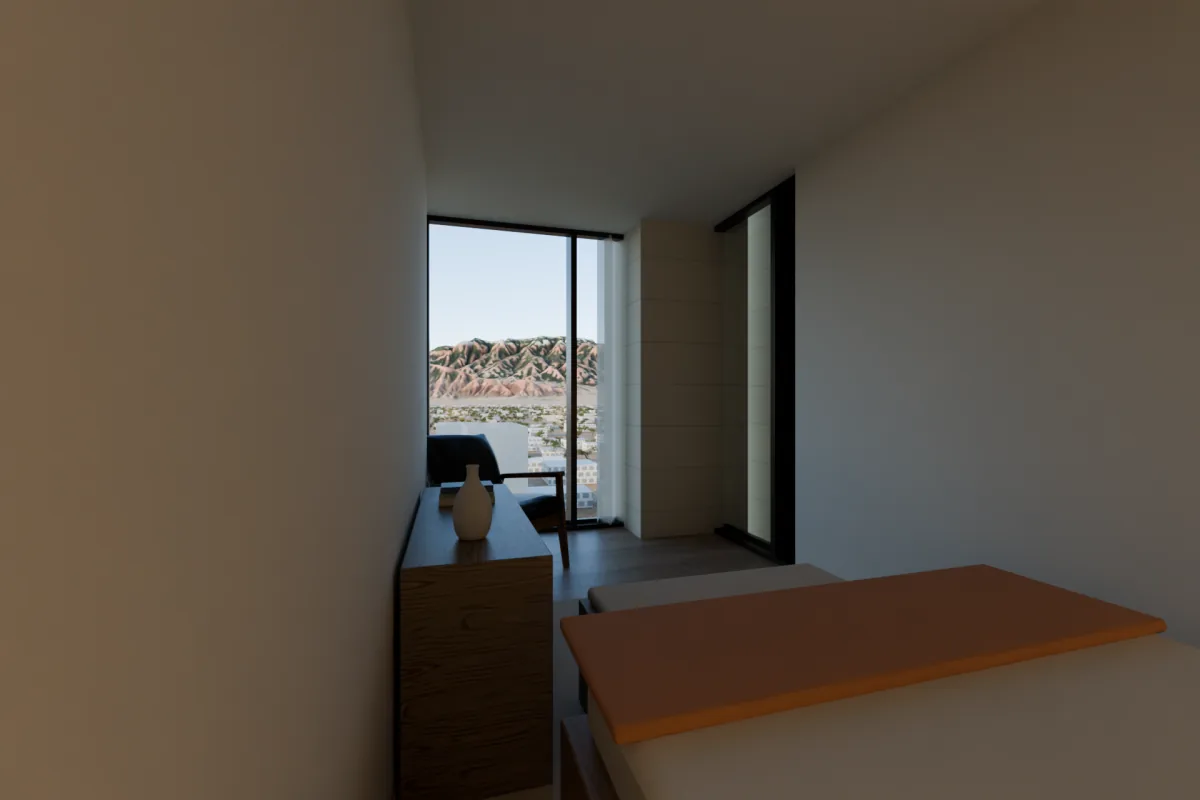

Corner bedroom with windows on two sides. — A-1202 · ONE-BEDROOM, NORTH: BEDROOM · 547 SF · LEVEL 12 · A-101

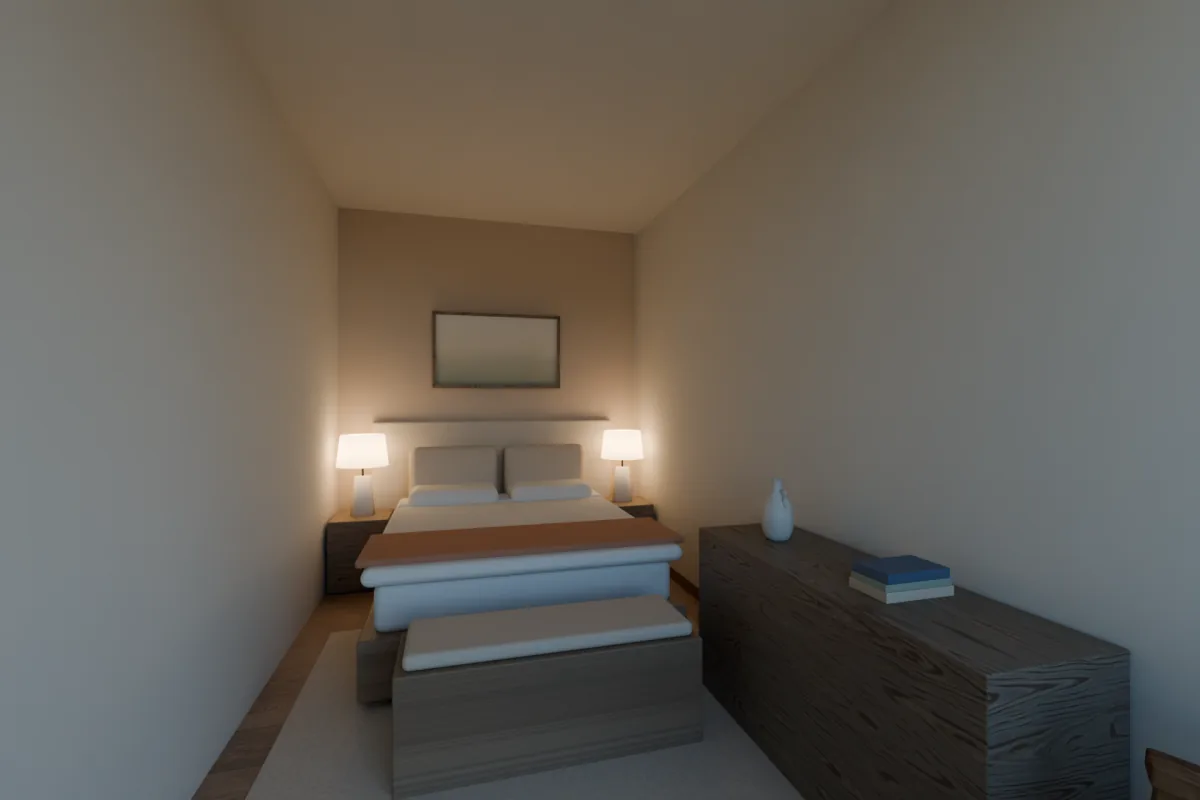

Bedroom bed wall seen from the corner window. — A-1202 · ONE-BEDROOM, NORTH: BED WALL · 547 SF · LEVEL 12 · A-101

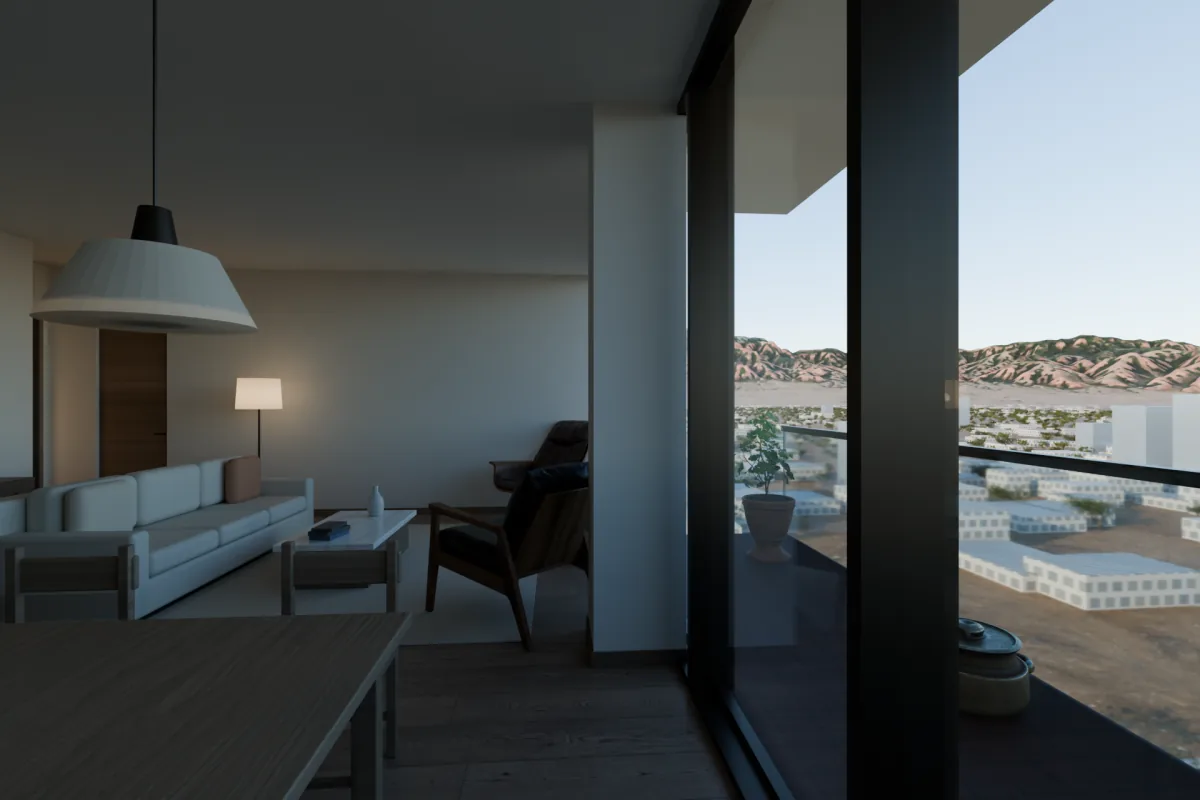

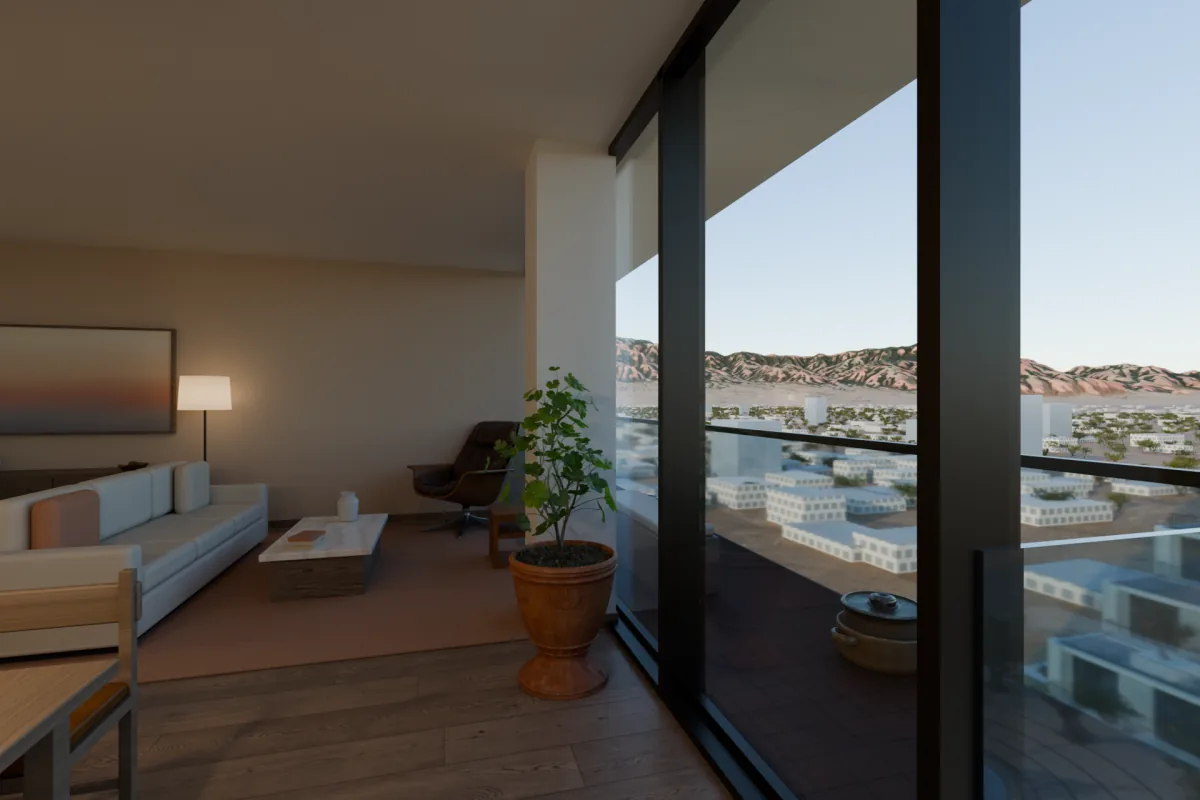

Two-bedroom apartment living room with glass to the east balconies. — A-2103 · TWO-BEDROOM, SOUTH: LIVING · 1,290 SF · LEVEL 21 · A-101

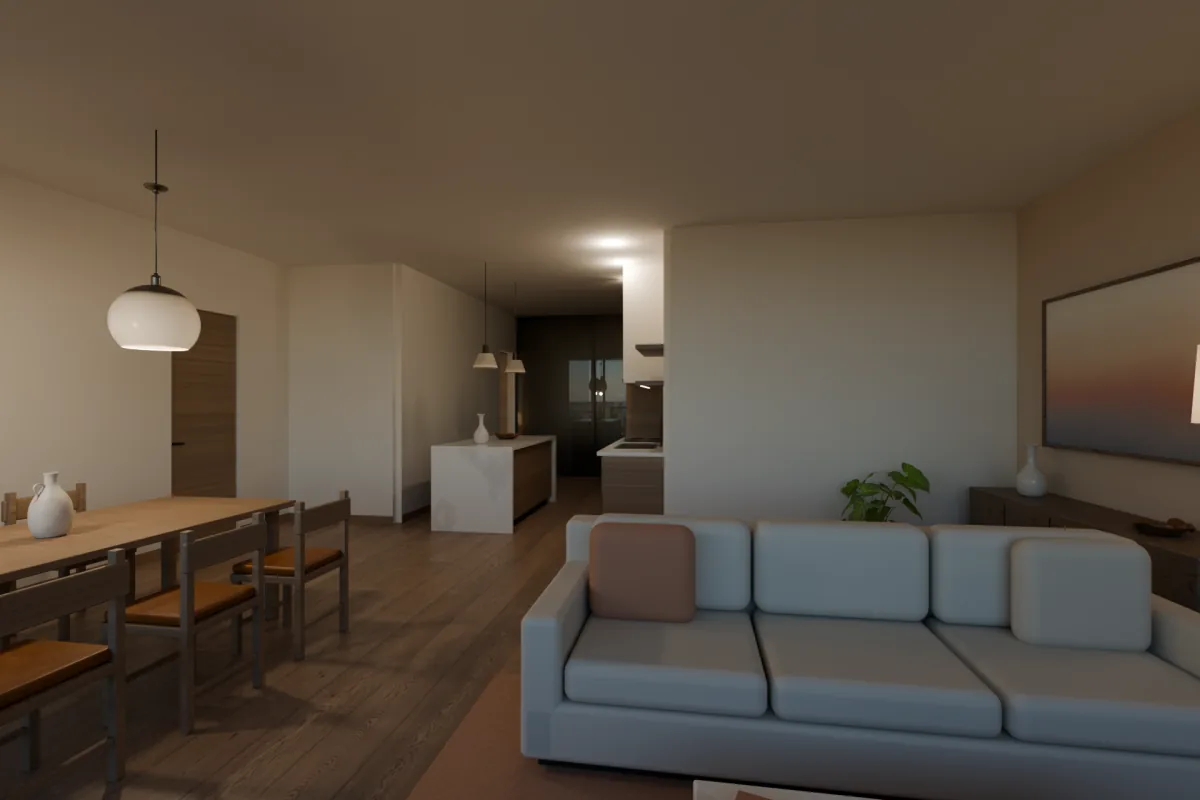

Open living and dining room with a long dining table, a sofa and a kitchen island at the far end. — A-2103 · TWO-BEDROOM, SOUTH: KITCHEN · 1,290 SF · LEVEL 21 · A-101

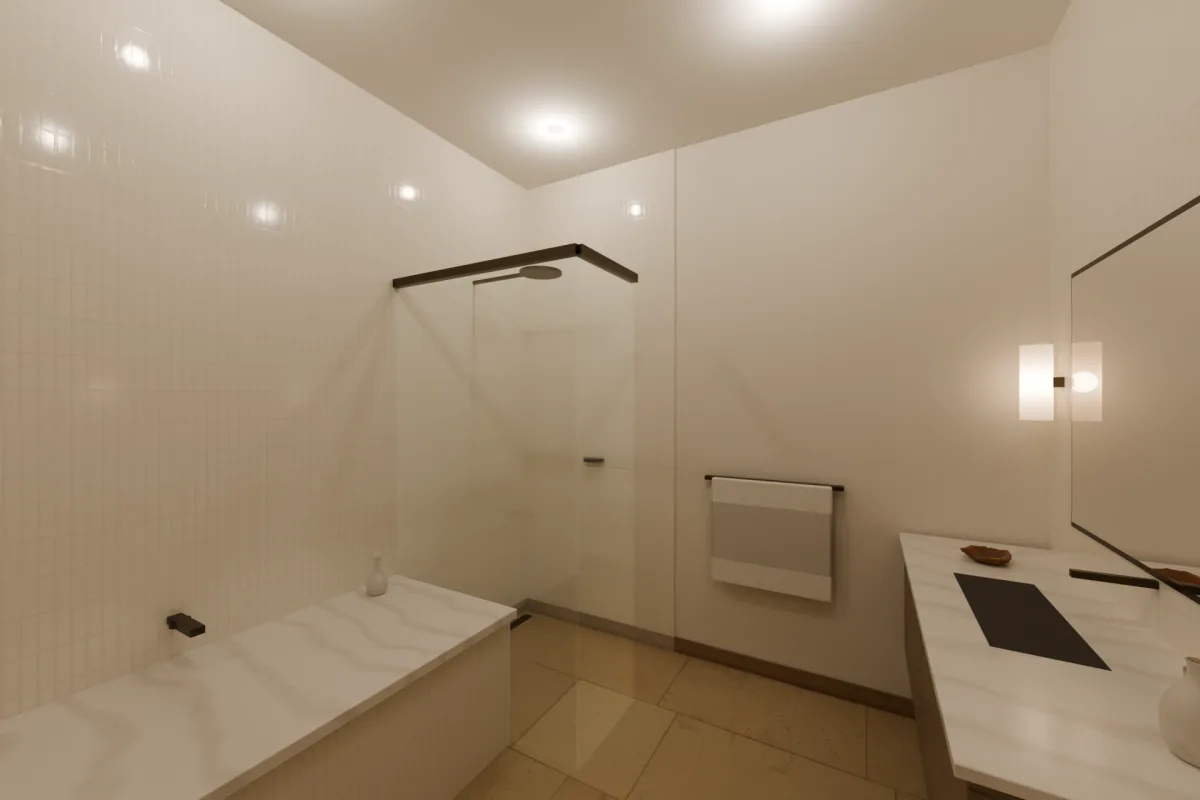

Bathroom with a glass shower screen, a stone vanity and wall sconces. — A-2103 · TWO-BEDROOM, SOUTH: BATH · 86 SF · LEVEL 21 · A-101

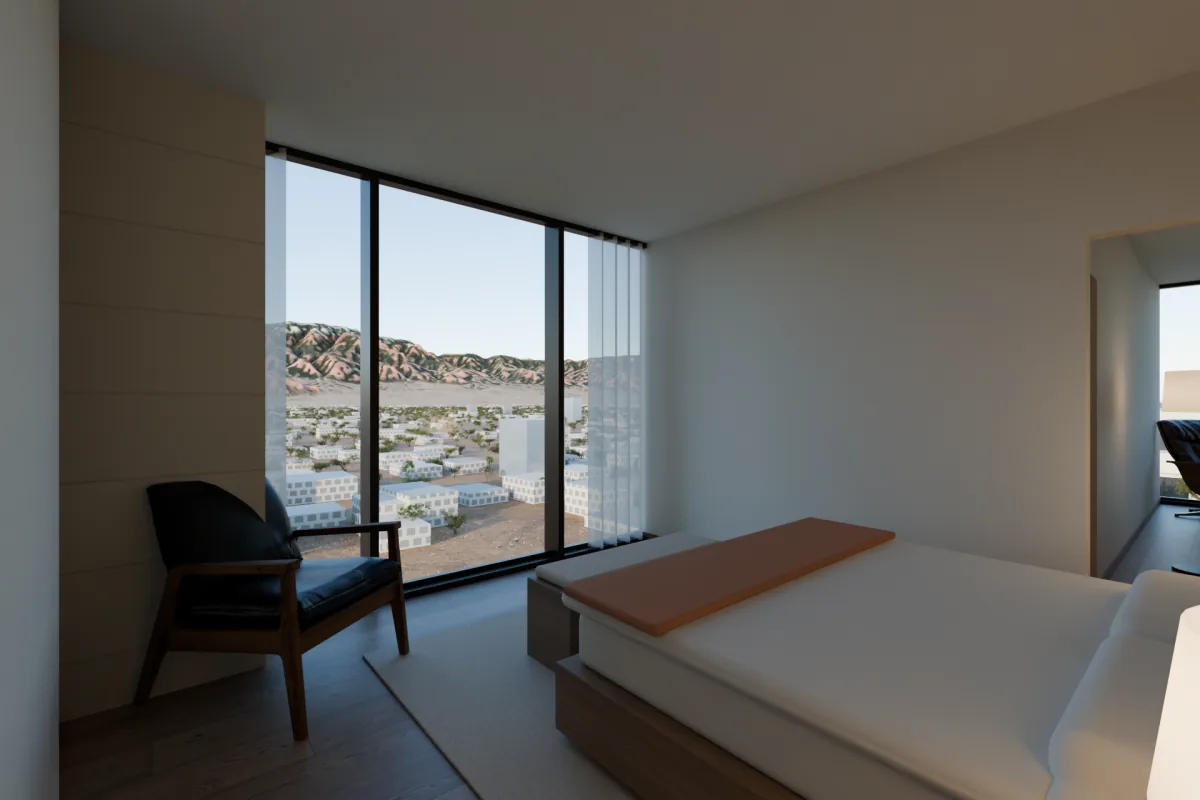

Bedroom with windows on the north face of the tower. — A-2104 · TWO-BEDROOM, NORTH: BEDROOM · 1,214 SF · LEVEL 21 · A-101

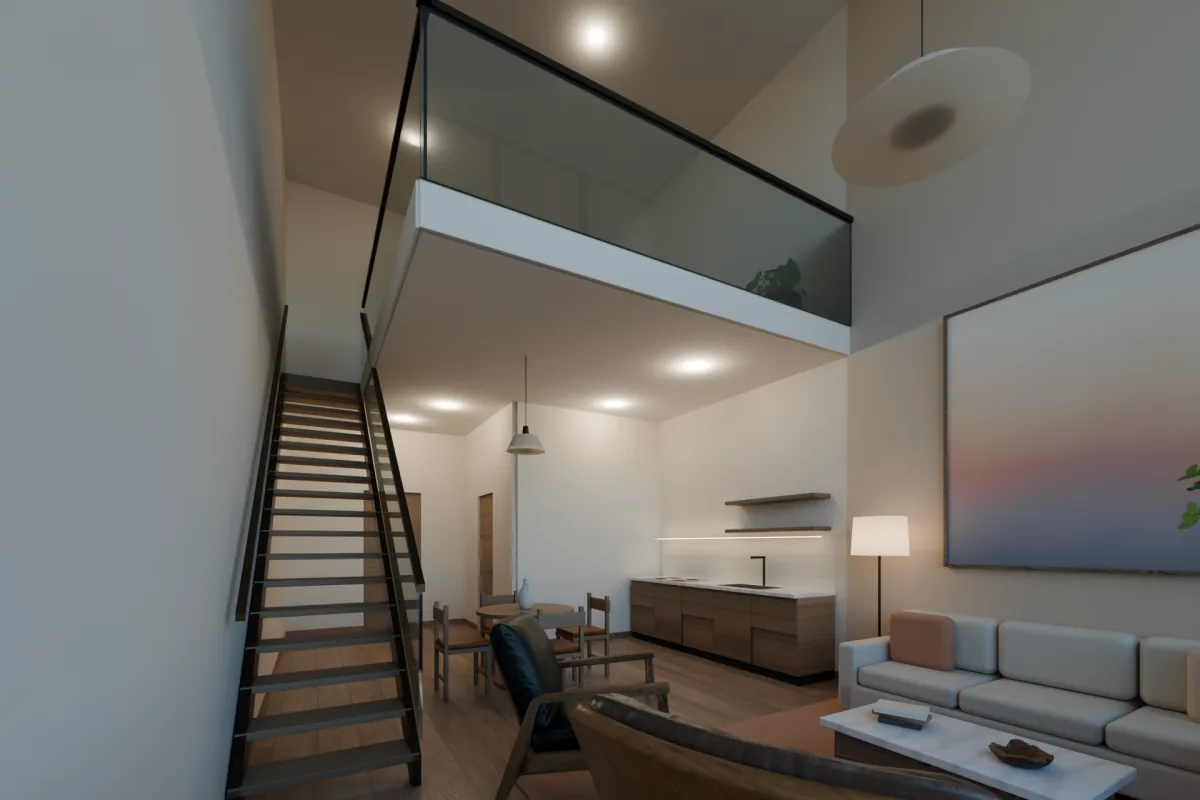

Double-height living room of a studio loft, with a stair to the sleeping loft. — A-1304 · STUDIO LOFT: LIVING · 895 SF · LEVELS 13-14 · A-102

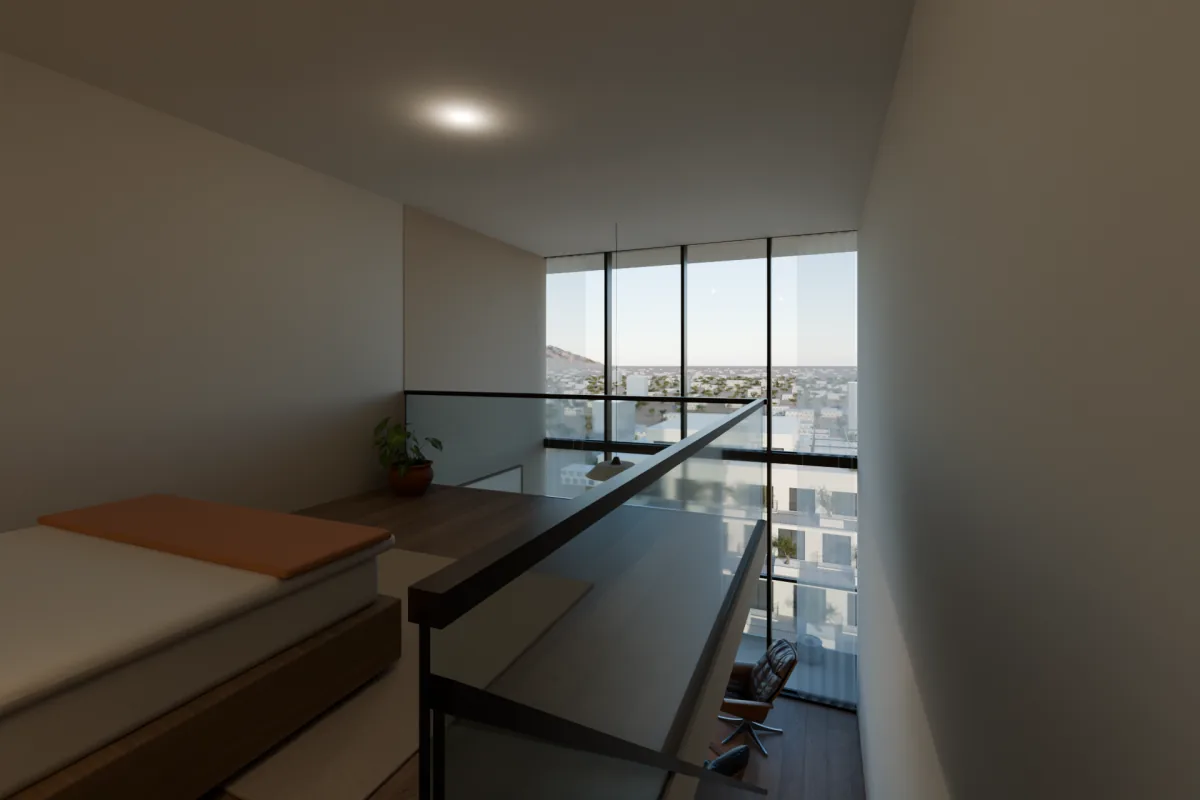

Sleeping loft above a double-height living room. — A-1304 · STUDIO LOFT: SLEEPING LOFT · 895 SF · LEVELS 13-14 · A-102

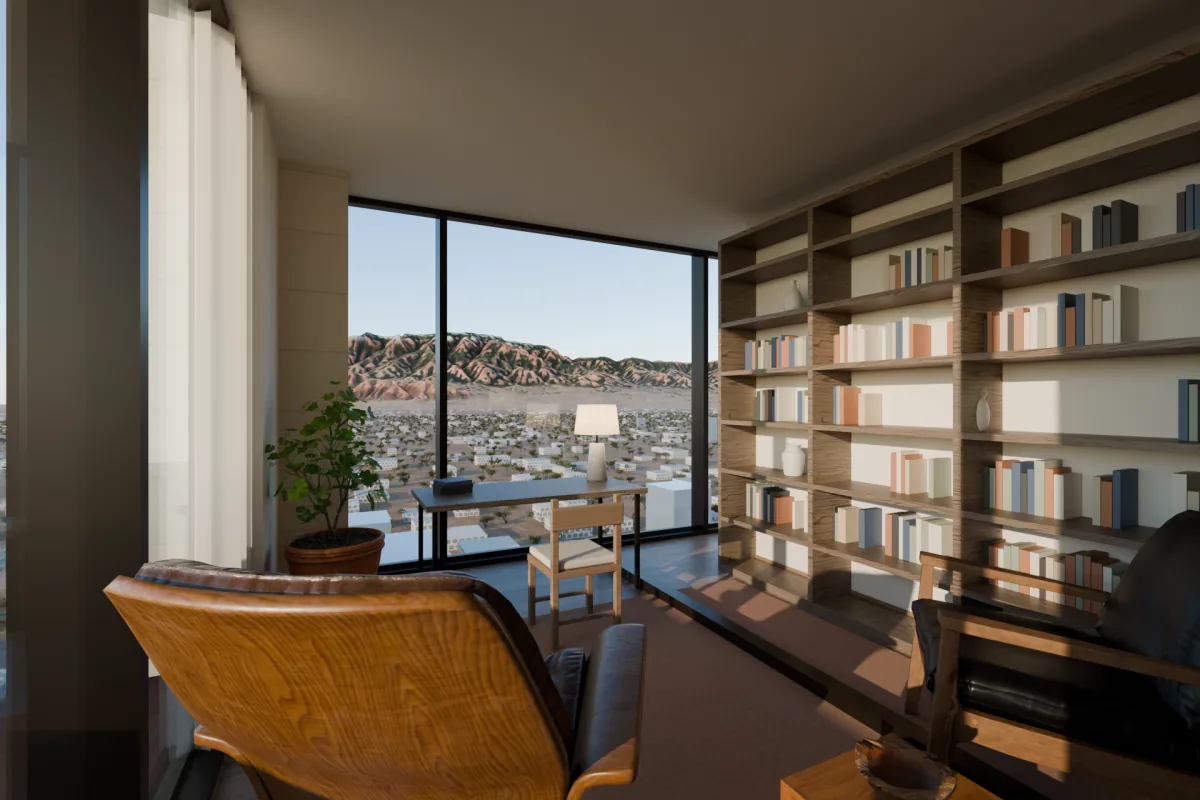

Den with a full-height bookcase, a leather lounge chair and windows facing the mountains. — A-2201 · CROWN RESIDENCE: DEN · 1,281 SF · LEVEL 22 · A-101

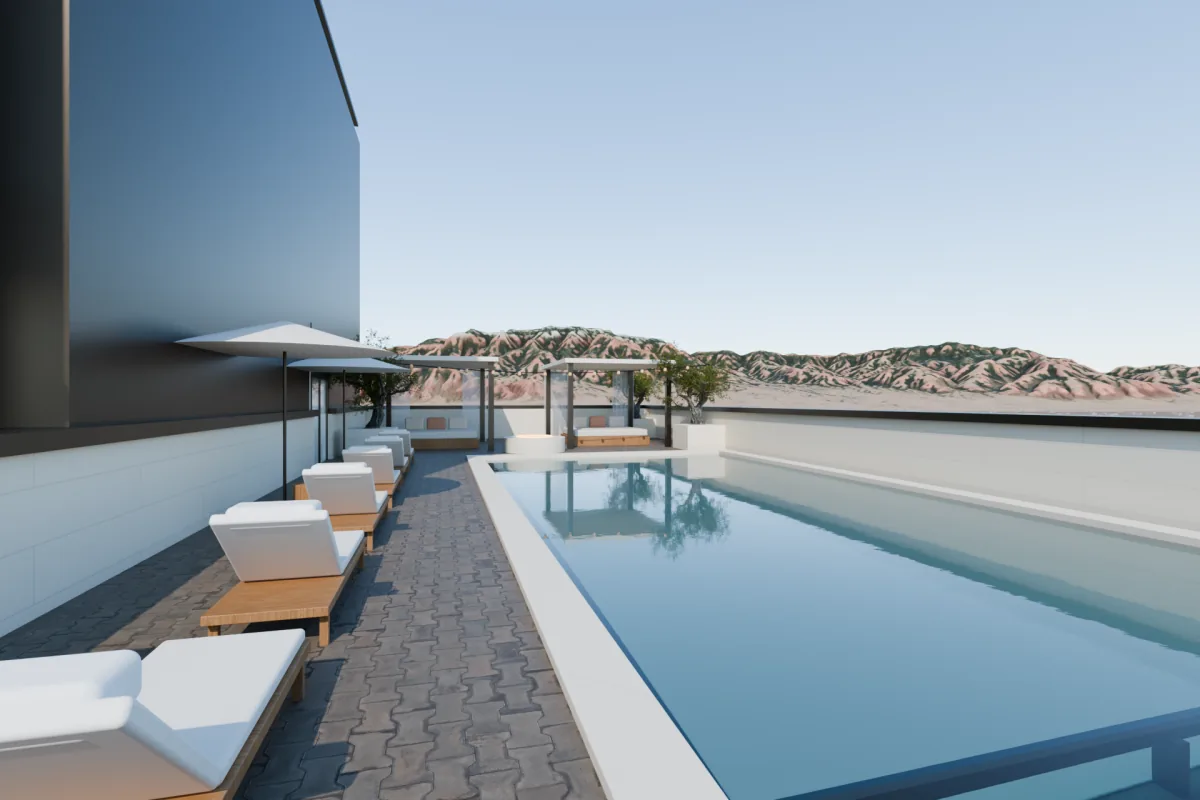

Rooftop pool with loungers and shade umbrellas beside the tower crown. — SLAB B ROOF · RESIDENTS' POOL DECK · LEVEL 22 · A-101

[02] / PODIUM

Podium: market, food hall and office

6 VIEWS · SHEET A-121

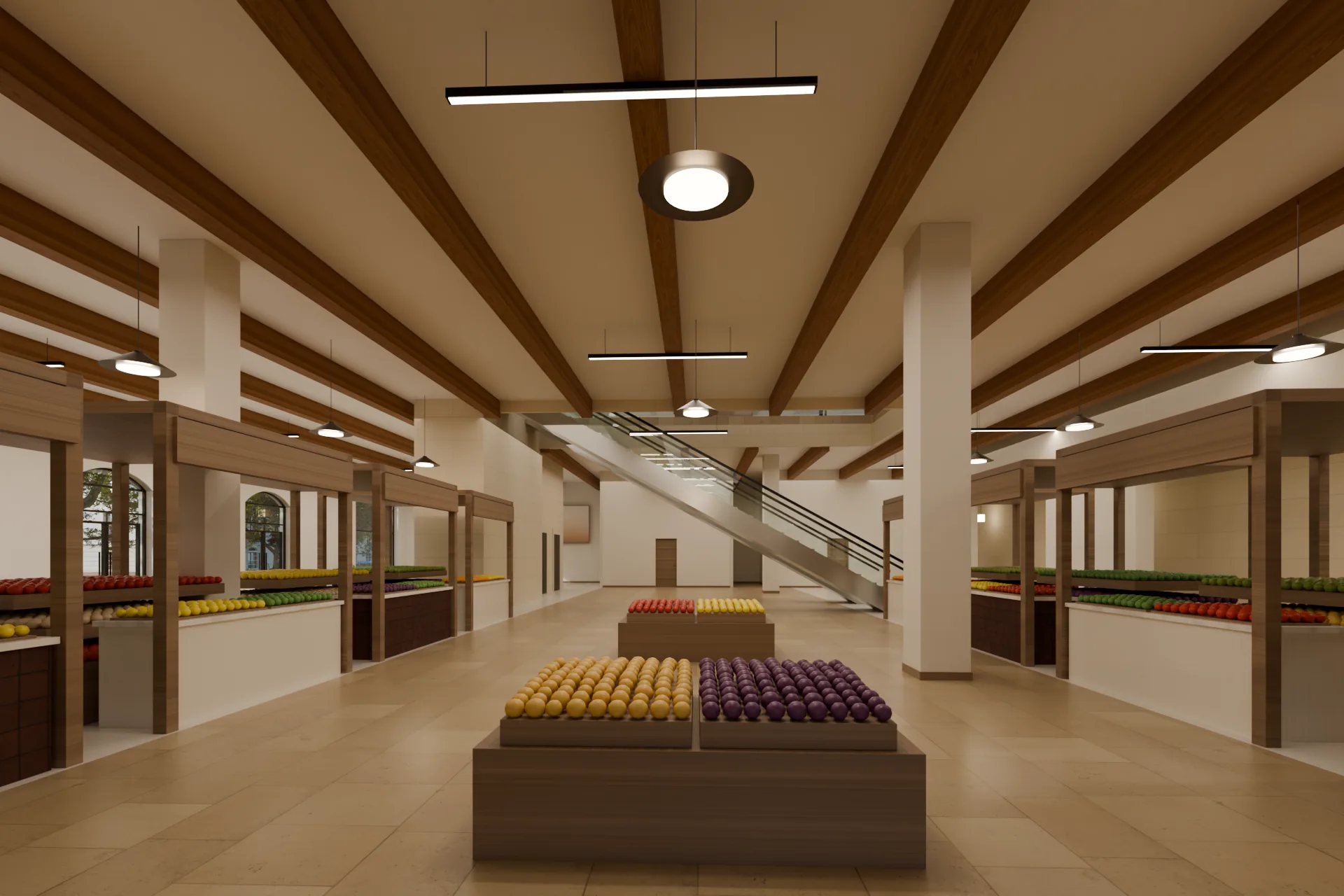

Indoor food market with oak-framed stalls, terrazzo floors, oak ceiling beams and bronze pendant lights. — A-110 · FOOD MARKET · 9,442 SF · LEVEL 1 · A-121

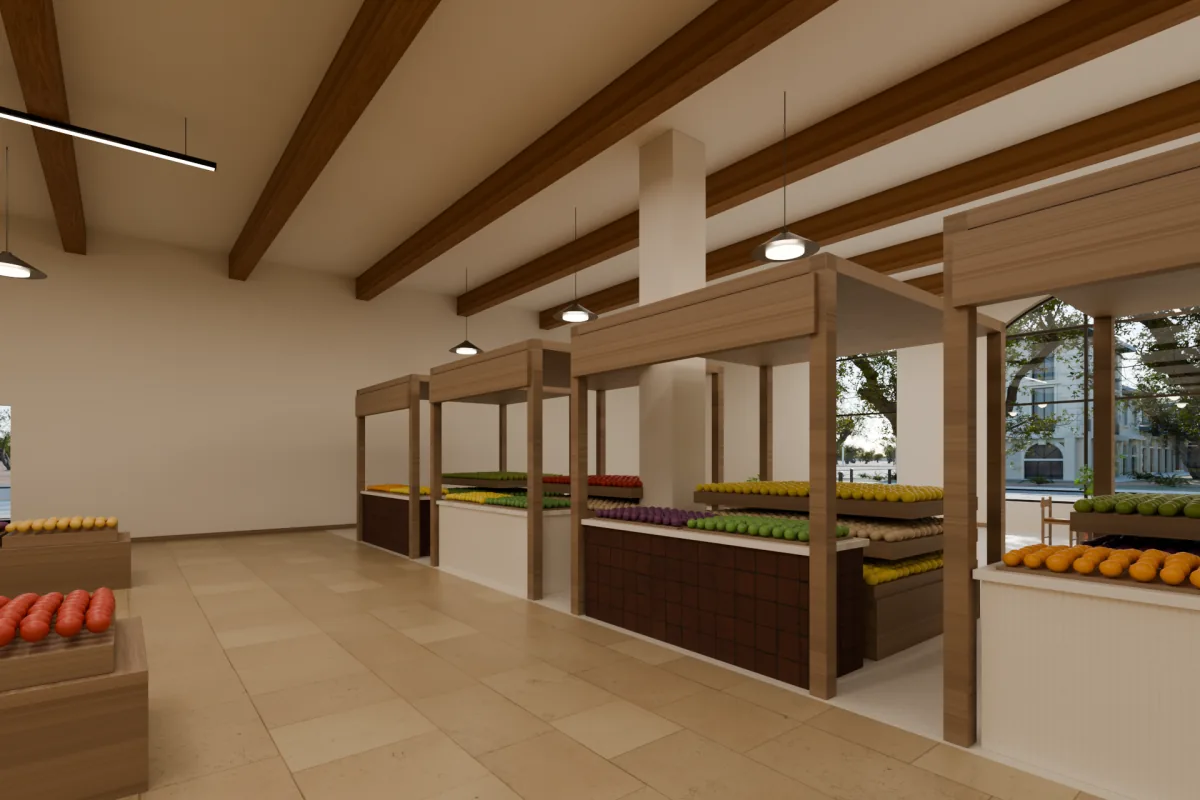

Market stalls with tiled counters, produce crates and bronze dome pendants. — A-110 · FOOD MARKET: STALLS · 9,442 SF · LEVEL 1 · A-121

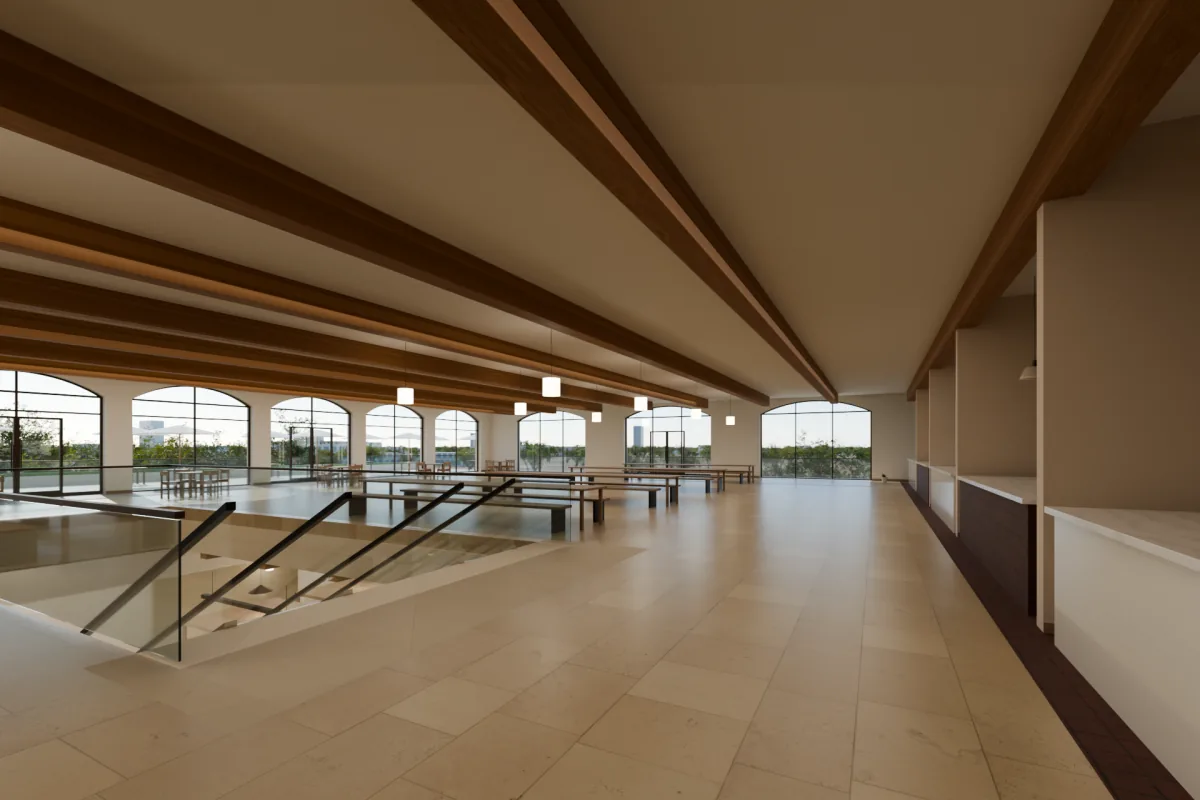

Food hall with vendor counters, long oak tables and benches, and opal globe lights. — A-201 · FOOD HALL · 9,946 SF · LEVEL 2 · A-121

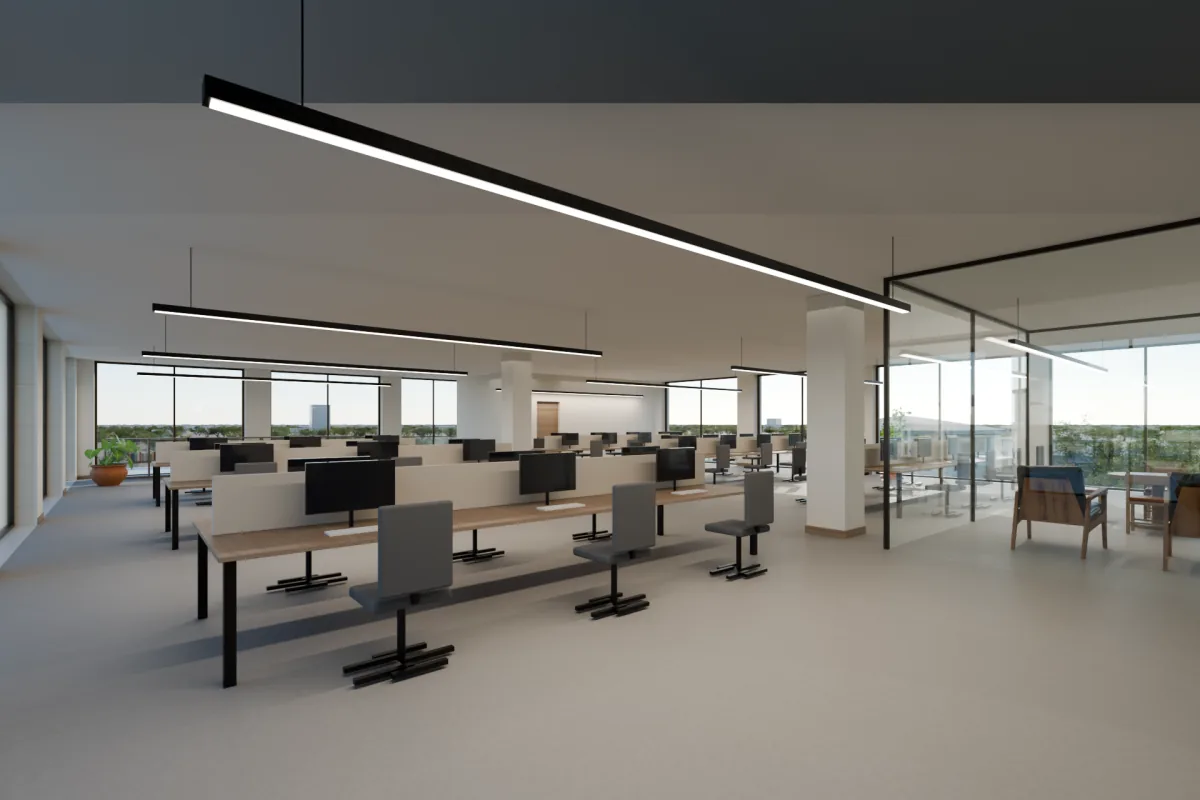

Open office with rows of oak desks, felt screens and linear pendant lights. — A-301 · OFFICE: OPEN WORKSPACE · 3,754 SF · LEVEL 3 · A-121

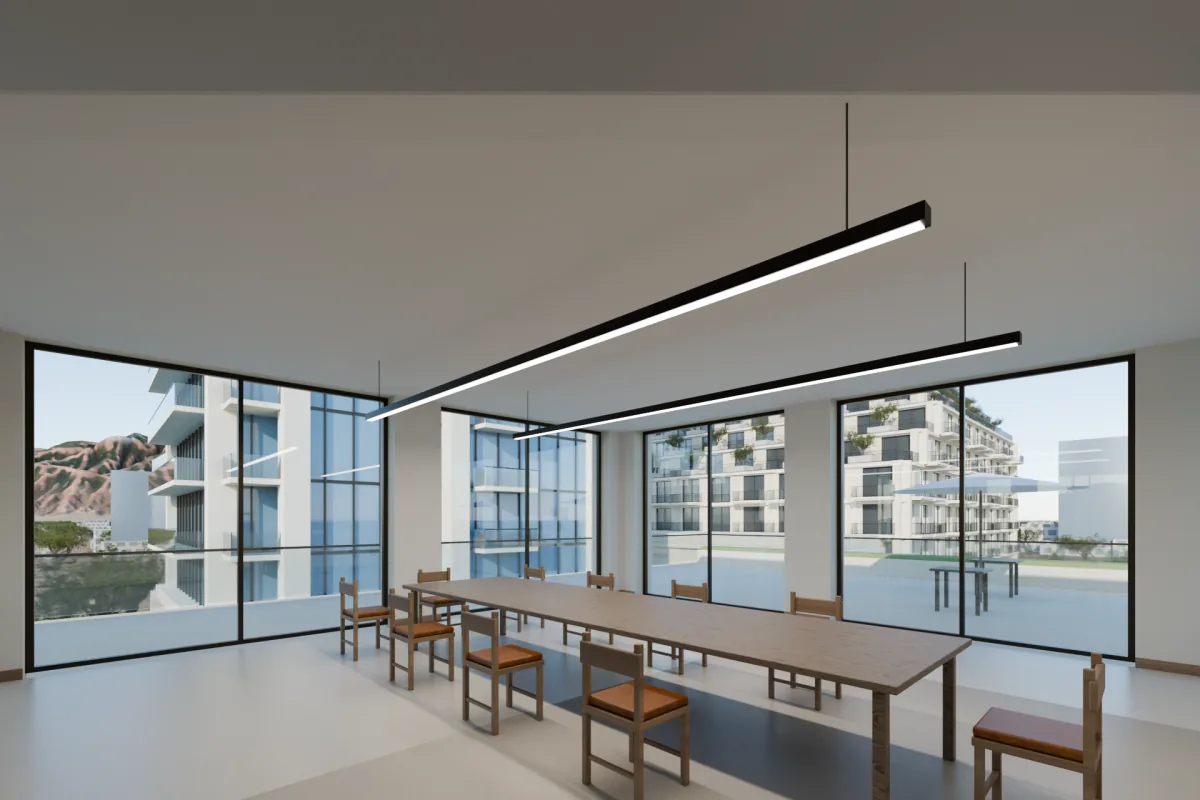

Conference room with a walnut table for twelve and glass walls looking toward the tower. — A-302 · OFFICE: CONFERENCE ROOM · 775 SF · LEVEL 3 · A-121

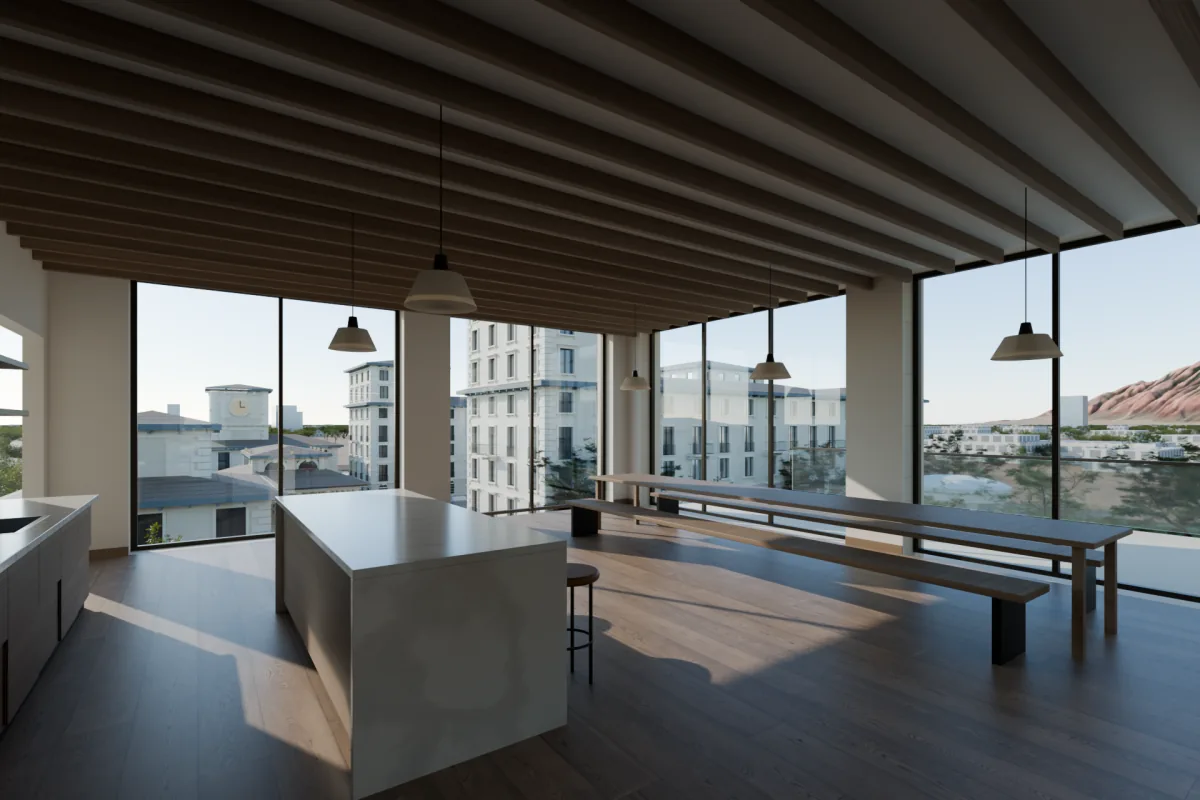

Office break room with a pantry island, oak slat ceiling and seating. — A-303 · OFFICE: BREAK ROOM · 775 SF · LEVEL 3 · A-121

FINISHES

Space	Floor	Walls and ceiling	Millwork and fixtures	Lighting
Food market	Terrazzo; honed limestone aisle	Lime plaster; oak beams at 7′-10″ on center under a plaster ceiling at 18′-1″	Eight oak-framed stalls with tile counter fronts and stepped produce crates; two aisle tables	Bronze dome pendants over the stalls; linear pendants
Food hall	Honed limestone; terracotta band at the vendors	Plaster ceiling at 13′-0″ with oak beams; clay plaster partitions	Six vendor counters with tile fronts, bronze hoods and menu boards; communal oak tables and benches; bar A-203	Opal globes over the tables; pendants at the counters
Office	Carpet tile in the workspace; terrazzo at reception; white oak in the break room	Plaster ceiling at 10′-8″; oak slat ceilings at reception and the break room	Oak benching desks with felt screens; walnut conference table; quartzite pantry island; walnut reception desk	Linear pendants over the desk rows; pendants over the table and island

[03] / BUILDING B

Building B: grocery, restaurant and shop

3 VIEWS · SHEET A-111

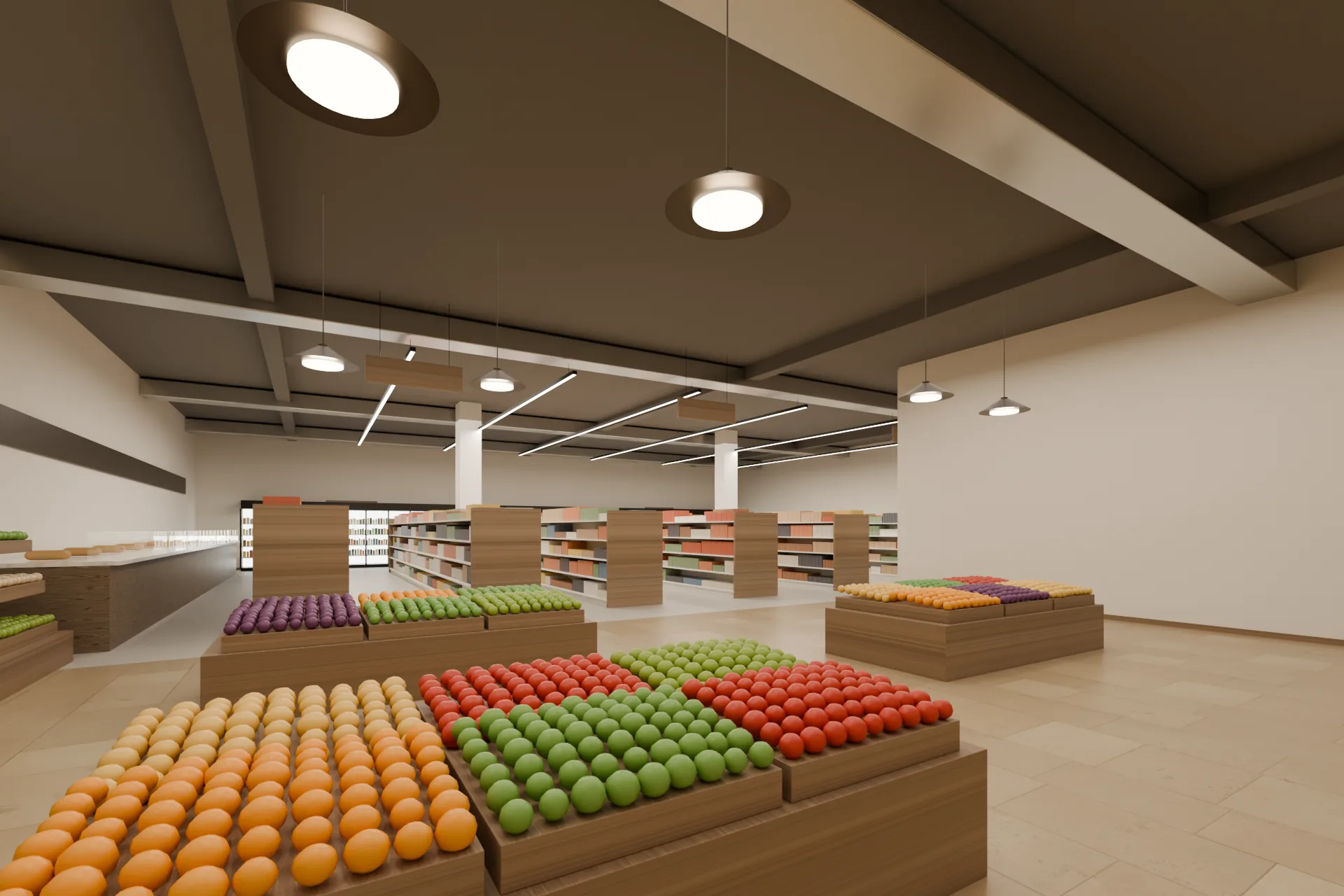

Grocery store with oak produce islands, shelving aisles and refrigerated cases. — B-111, B-103 · GROCERY AND PLAZA ENTRANCE · 7,298 SF · LEVEL 1 · A-111

Restaurant with a walnut bar, leather banquette, terracotta tile floor and opal globe lights. — B-101 · RESTAURANT · 2,072 SF · LEVEL 1 · A-111

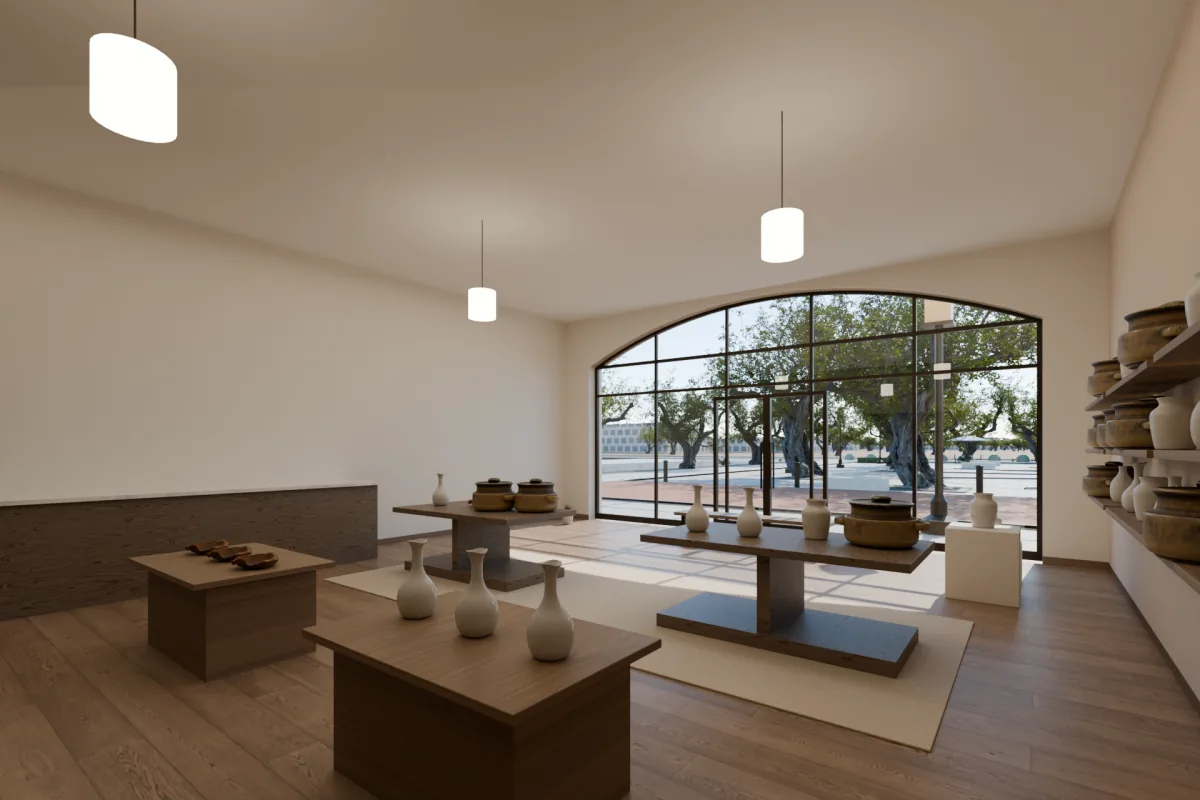

Shop with oak shelving, walnut display tables and ceramics on plinths by the window. — B-104 · CERAMICS AND HOME GOODS SHOP · 1,036 SF · LEVEL 1 · A-111

FINISHES

Space	Floor	Walls and ceiling	Millwork and fixtures	Lighting
Grocery	Sealed concrete; limestone in the produce hall	Open painted structure with ducts; plaster walls	Oak produce islands; six gondolas with oak end caps; refrigerated cases on the north wall; deli and bakery counter	Linear LED rows over the aisles; bronze domes over the produce
Restaurant	Terracotta tile	Plaster; oak beams; clay plaster on the east wall	Walnut bar with back-bar shelving; open kitchen pass; leather banquette	Opal globes; pendants at the bar
Shop	White oak	Clay plaster on the west wall	Oak wall shelving and walnut display tables with ceramics; plinths by the window	Opal globes

[04] / STATION QUARTER

Station quarter

3 VIEWS · SHEET A-131

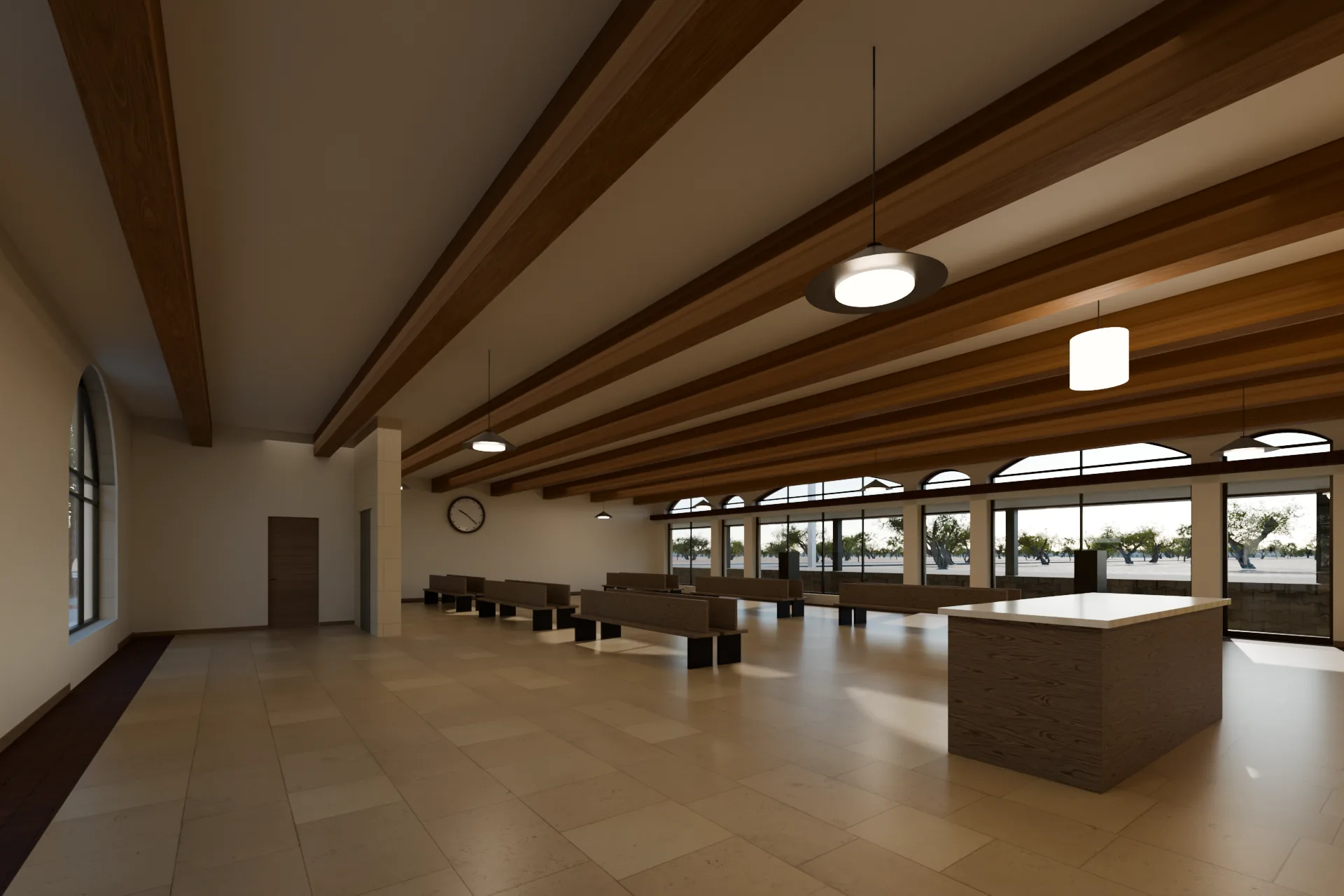

Rail station waiting hall with walnut benches, a departures board and bronze dome pendants. — D-101 · STATION HALL · 3,444 SF · LEVEL 1 · A-131

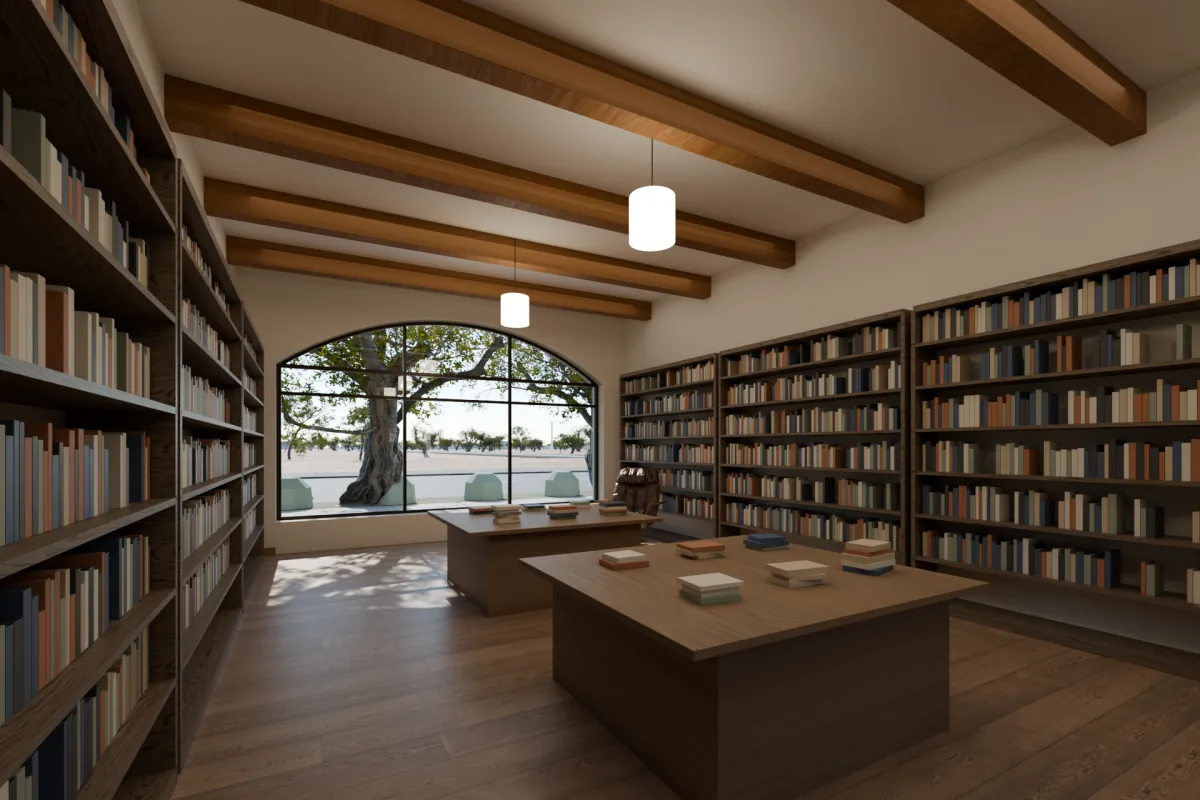

Small book and news shop with walnut shelving, display tables and a magazine rack. — D-302 · STATION SHOP, BOOKS AND NEWS · 770 SF · LEVEL 1 · A-131

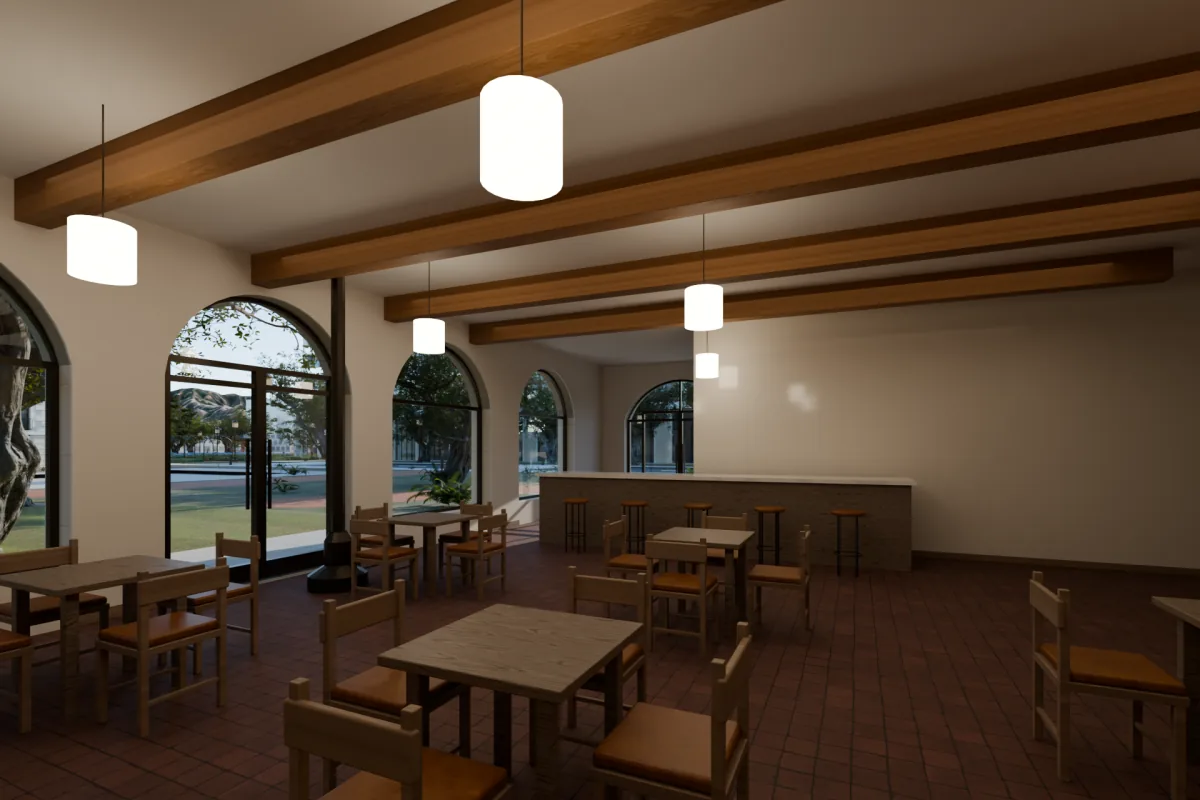

Corner restaurant with a leather banquette, a walnut bar and terracotta tile floor. — D-501 · CORNER RESTAURANT · 1,959 SF PER FLOOR · LEVEL 1 · A-131

FINISHES

Space	Floor	Walls and ceiling	Millwork and fixtures	Lighting
Station hall	Honed limestone with a terracotta border	Plaster ceiling at 13′-3″ with oak beams	Back-to-back walnut benches; information desk; departures board; station clock	Bronze dome pendants
Station shop	White oak	Walnut shelving on both party walls	Oak display tables; magazine rack; counter at the door	Opal globes
Corner restaurant	Terracotta tile	Plaster; oak beams; tile on the core wall	Leather banquette on the kitchen wall; walnut bar on the core	Opal globes

This is an independent portfolio case study, not an approved or built development. Program figures are schematic design assumptions, not verified site measurements or a demonstration of feasibility.

A case study by Kyle Tran

From Santa Fe, New Mexico. USC B.S. Real Estate Development, August 2026. Based in Los Angeles.
